Standard size, fibreglass, vinyl cover - FIA 8855-1999

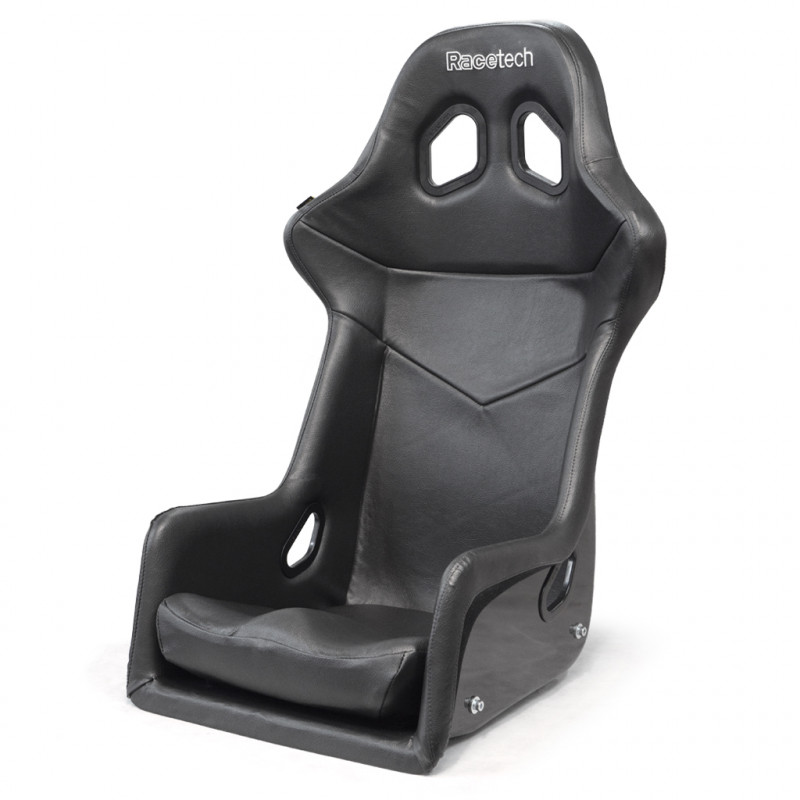

Announcing the all-new Vinyl Racetech 4100 Series! The RT4100 is a standard-sized fibreglass race seat. We have focused on achieving a lightweight seat shell with optimised geometry, straddling that line between designing the seat to be wide enough in the shoulders to suit the athletic build, but narrow enough to fit in most cockpits. The RT4100 Vinyl is designed for offroad and open vehicles where the seat is likely to get wet. Our patented back-mounted technology has trickled down from the 119 and 129 Series, giving you the option of fixing the seat to the roll cage at shoulder level. Large harness guides and a removable moulded base cushion allow a range of drivers of varying heights to fit. Marine-grade vinyl, parallel sides and pronounced thigh support round off the features of this already accomplished seat. For the larger driver, the RT4100WT is 60mm taller and 40mm wider. Please choose the optional drain holes if the seat is likely to get wet. Please note, if Drain Holes are added this shell modification voids the FIA approval.
Dimensions and Weights:
Model | Material | FIA | A | B | C | D | E | F | G | H | K | L | M | Shell Weight | Total Weight |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RT4100V | Fibreglass | 8855 | 60 | 56 | 38 | 47 | 50 | 87 | 63 | 37 | 56 | 67 | 40 | 5.7 | 7.6 |
RT4100WTV | Fibreglass | 8855 | 64 | 62 | 42 | 51 | 50 | 93 | 69 | 37 | 62 | 69 | 44 | 6.0 | 7.9 |
dimensions in cm | weights in kg |
Application | |
Common Applications | Offroad, boats, open-cockpit vehicles |
Stock Colour / Material | |
Gelcoat | Gloss Black |
Seat Cover | Marine-grade vinyl |
Wear Patches | N/A |
Technical | |
Homologation | FIA 8855-1999 |
Shell Construction | Fibreglass Composite |
Shell Weight | From 5.7kg |
Bolt Torque (Zinc) | 30Nm / 22 ft lb |
Design | |
Sizes | Standard WT - Wide & Tall |
Head Restraint | N/A |
HANS Compatible | Yes |
Harness Compatibility | Up to 6-point harness |
Large Harness Guides | Yes |
Air Ducting | N/A |
Back-mount Compatible | Yes |
