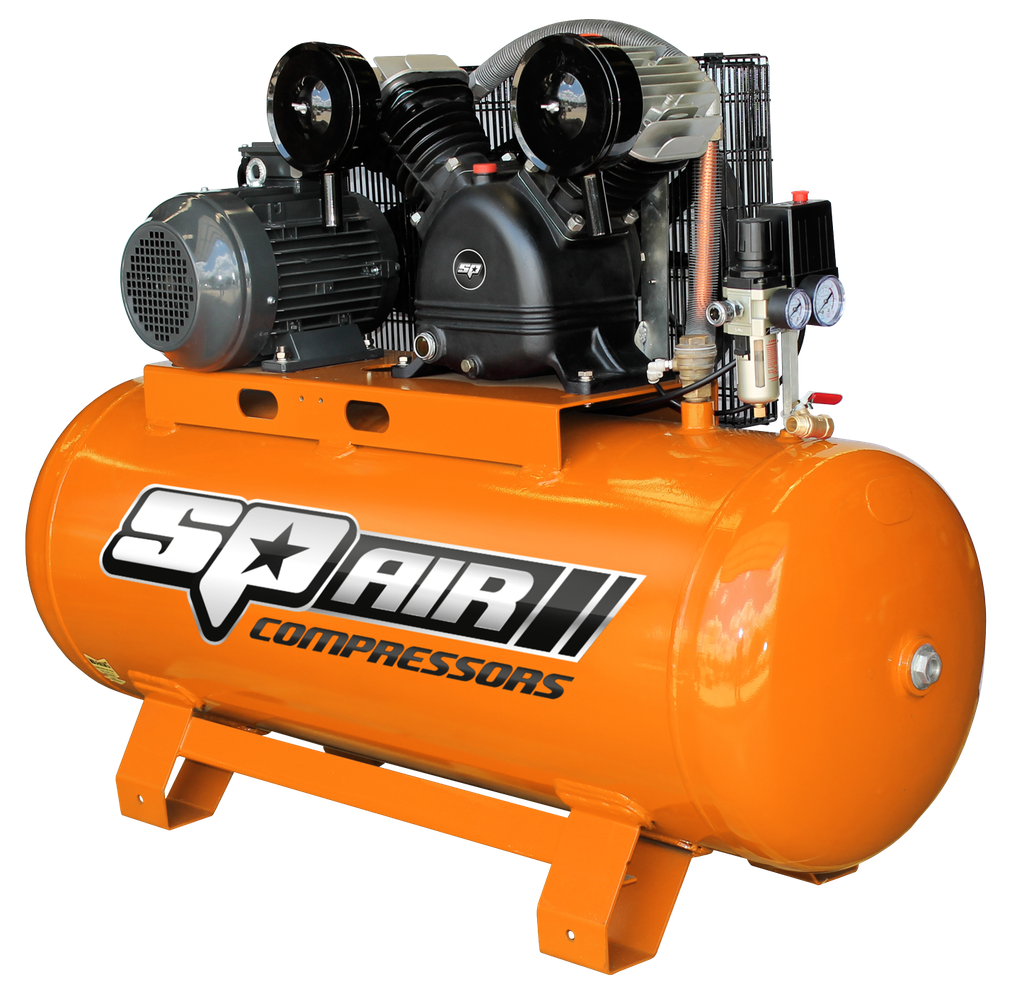

COMPRESSOR 5.5HP BELT DRIVE 200LT TANK SP AIR
PN:
5.5HP CAST IRON V-TWIN STATIONARY 3 PHASE AIR COMPRESSOR
Ideal for commercial applications
SPECIFICATIONS
| Pump Size: | 5.5Hp 3 Phase Belt Drive |
|---|---|
| Tank Size: | 200L |
| Free Air Delivery (FAD): | 508 L/min |
| Max Operating Pressure: | 150PSI |
| Voltage: | 3 Phase 415Volts/50Hz 10amp per PH |
| Unit Weight: | 160Kg |
| Unit Dimensions: | 1470(L) x 490(W) x 1130(H)mm |
| Accessories Included: | Filter/Regulator |
| One-touch (Nitto style) connector |
FEATURES
| • High efficiency induction motor |
| • Full brass non-return valve |
| • Independent 3 phase switch box operates by a single phase pressure switch |
| • Copper delivery pipe |
| • Certified safety valve |
| • Large oil level sight glass |
| • Copper wound motor |
| • Cast iron cylinders |
| • Resettable overload protection |
